Review AB-type disc brake pads, CG125-type drum brake shoe sets and M10-designated brake line samples, then confirm the caliper, drum, hub, fluid, interface and validation inputs that control fit.
Illustrative routing context based on the current M10 reference; not installation or compatibility evidence.
Dimensions and catalog designations identify references; final fit remains conditional on the buyer's complete braking system and approval evidence.
Review required inputs →Each page separates source-listed dimensions and visible construction from materials, compatibility and performance values that still require controlled confirmation.

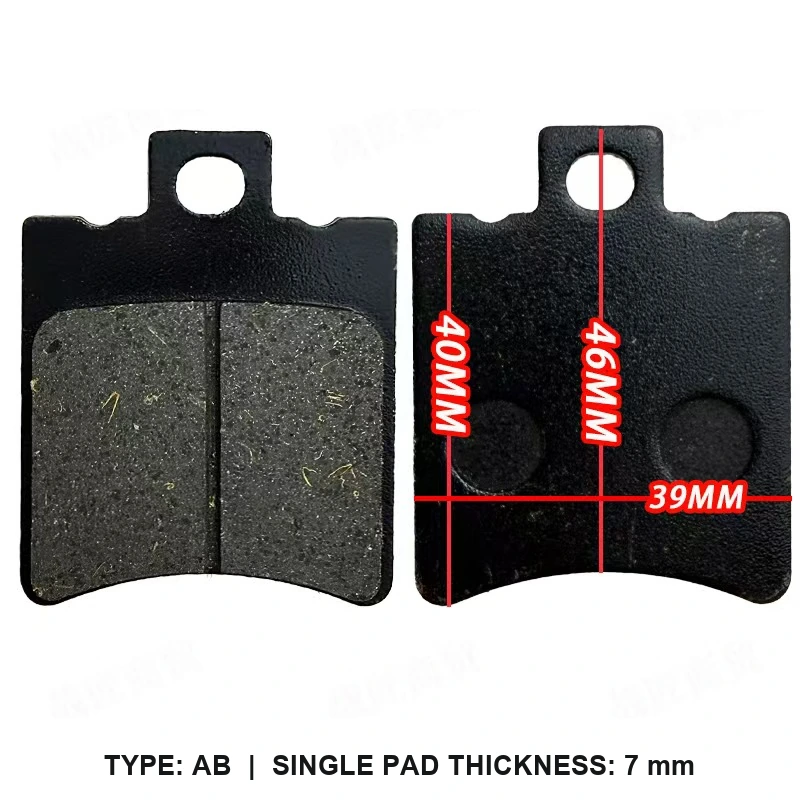

A ChiZe disc brake pad reference identified by its published plate dimensions. Final caliper fit and braking requirements are confirmed against the buyer's mating system.

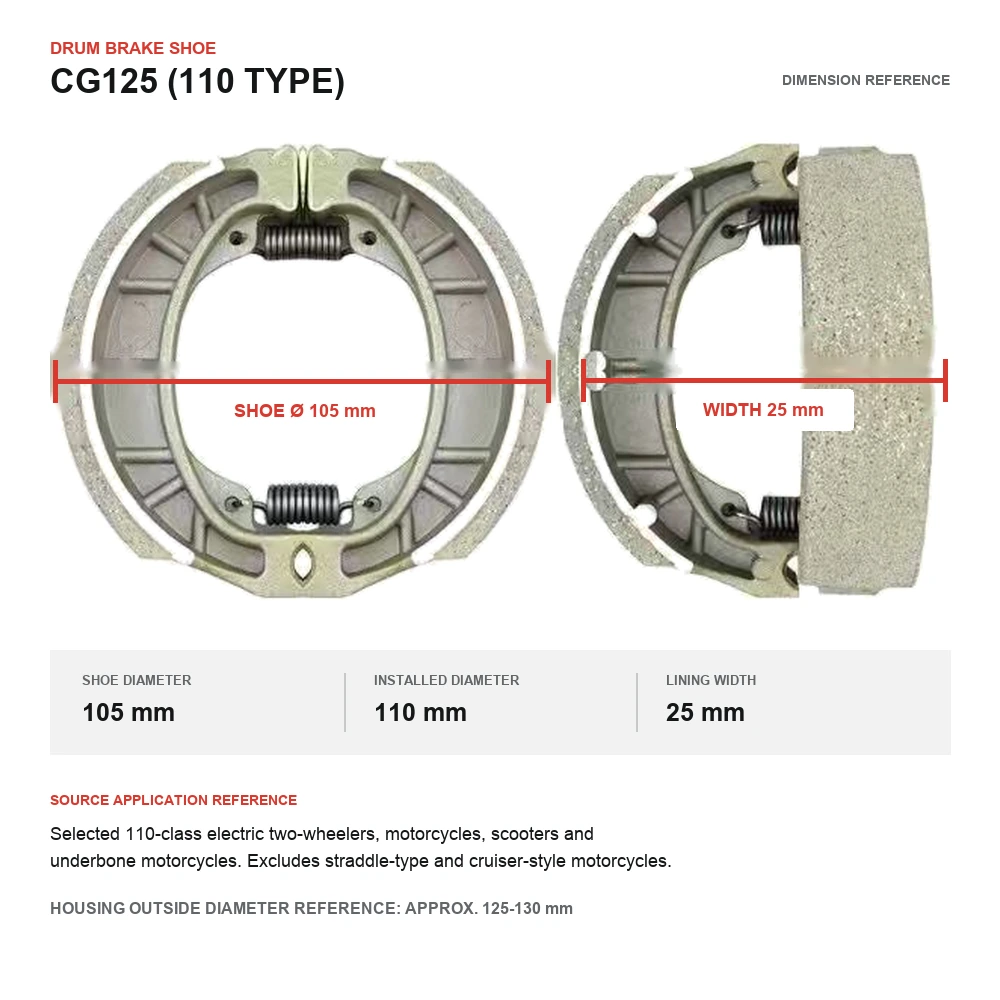

A ChiZe paired drum brake shoe reference with published shoe, installed-diameter and lining-width measurements. Final hub, cam and vehicle fit require system confirmation.

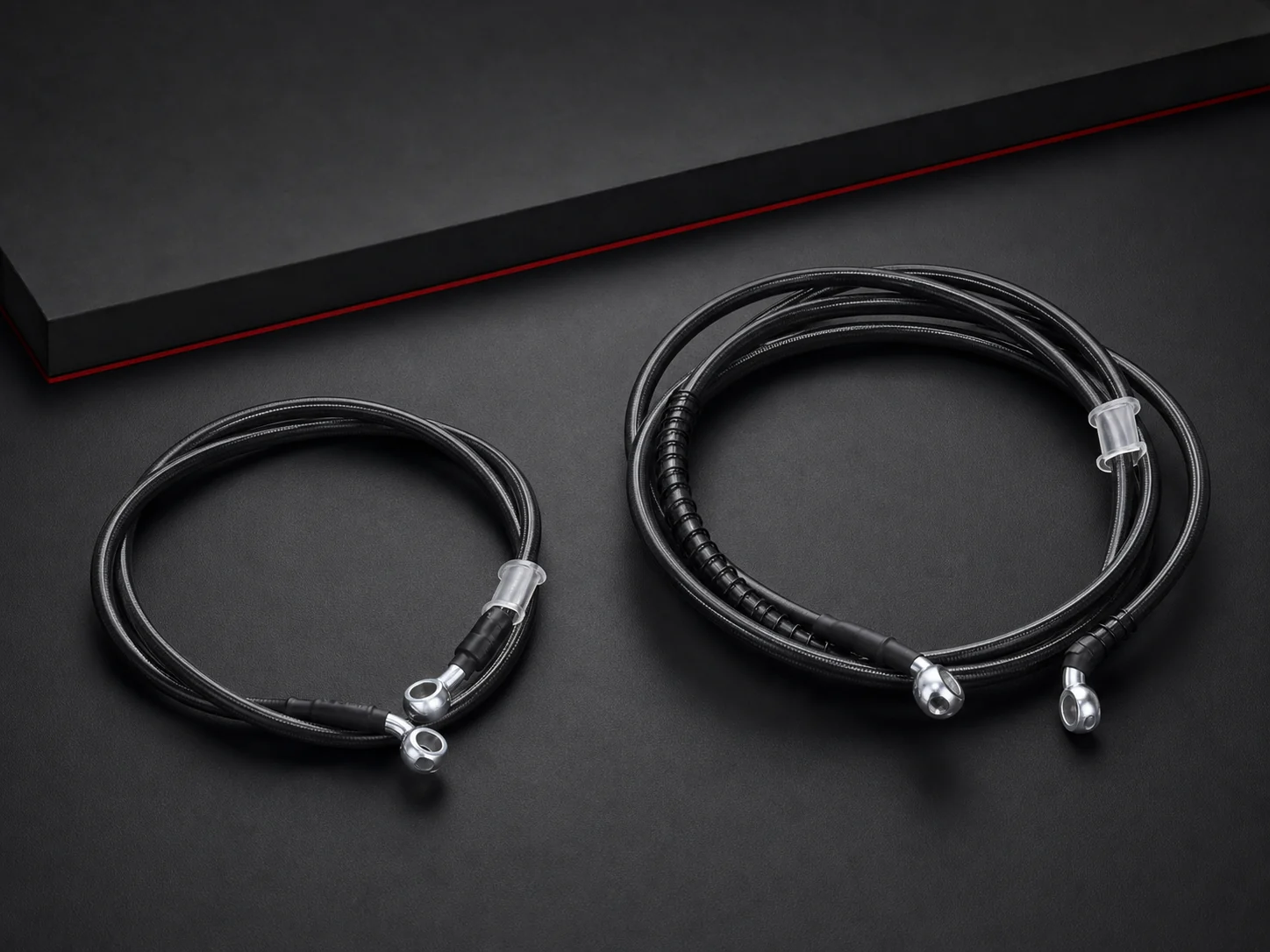

A supplied M10-designated sample with source-listed front and rear length references; production, fit and commercial status are not established.
This selector copies a sample-derived reference into the RFQ. It does not confirm supply, fit, fluid or pressure requirements.
A controlled brake line requirement connects the vehicle routing to both mating interfaces and the hydraulic system.
Safety, pressure, temperature and market claims require product-linked ChiZe evidence or an agreed third-party report.
| Disc brake pad | Caliper maker and model, original pad reference, controlled outline, thickness, rotor and friction requirements |
|---|---|
| Drum brake shoe | Vehicle and hub reference, drum internal diameter, shoe width, pivot and cam geometry, springs and set contents |
| Hydraulic brake line | Vehicle routing, front/rear position, fluid, line length, both end interfaces and mating components |
| Validation | Drawing or approved sample, target market, operating criteria and required product-linked test evidence |

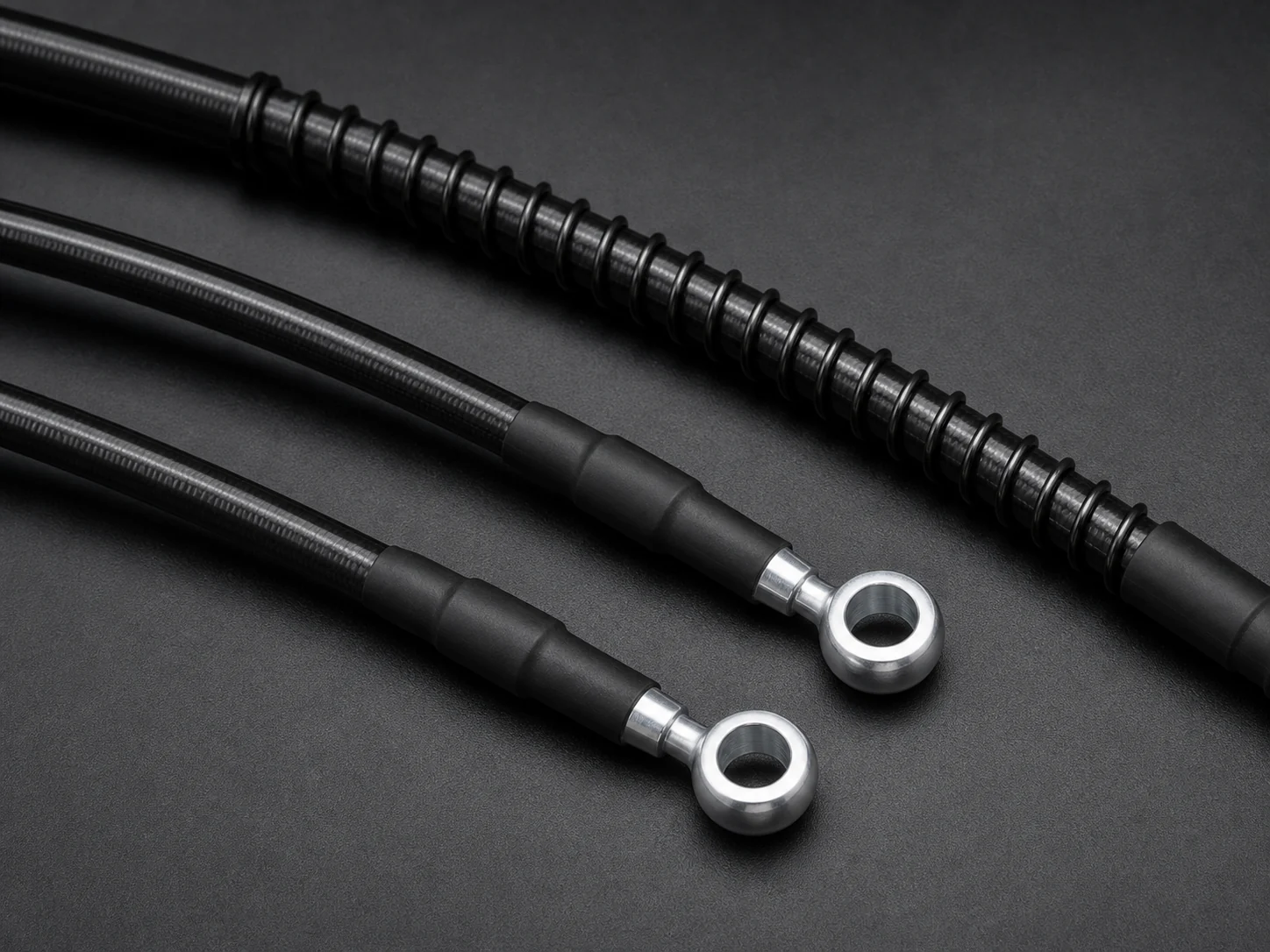

End fitting detail

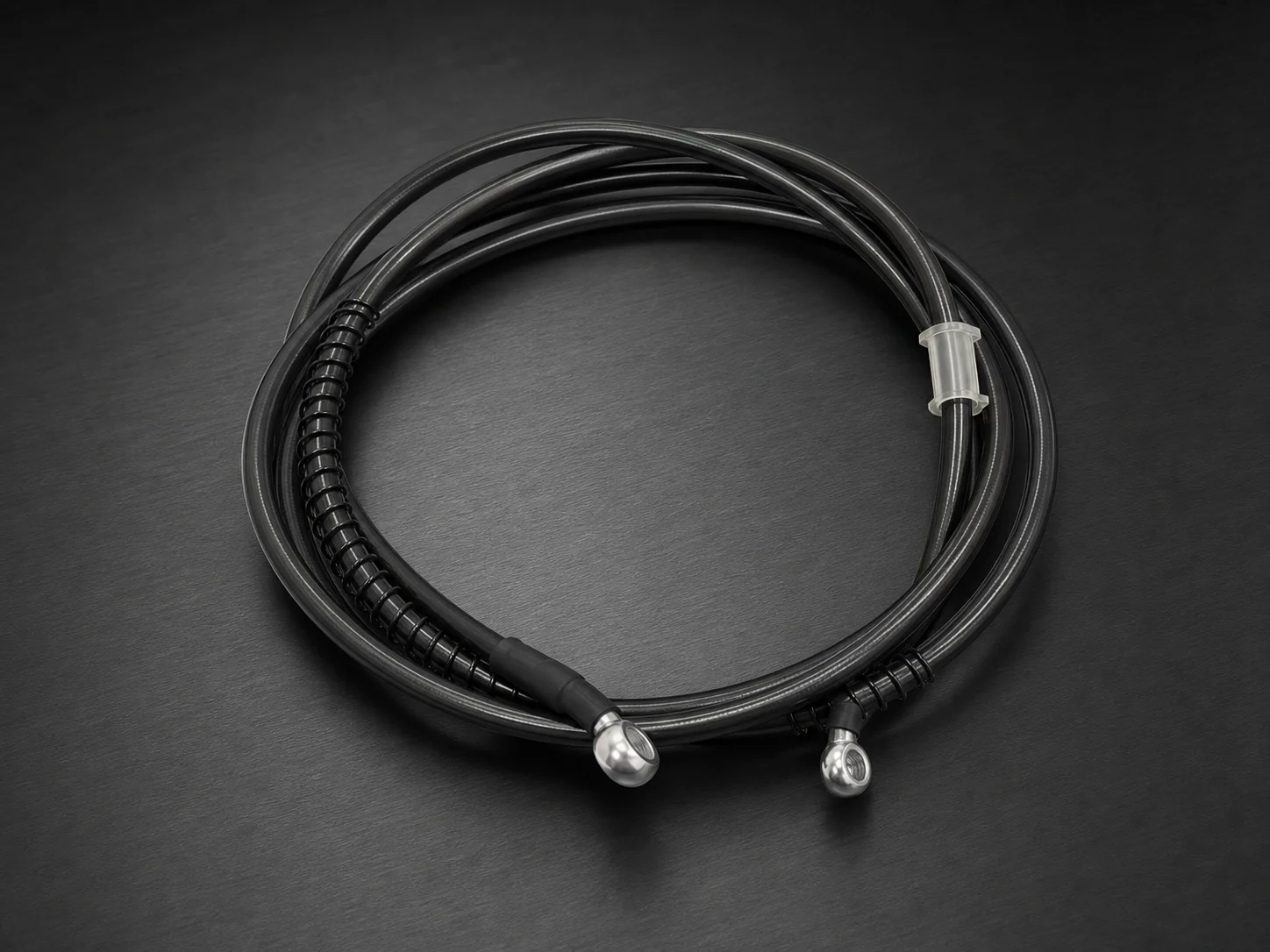

Rear coil guard detailThe detailed page separates sample-visible details and source-listed lengths from the technical, validation and commercial data that remain missing.
Open M10 sample review →Include the vehicle, mating brake system, original reference or drawing, dimensions, quantity, target market and validation needs.
