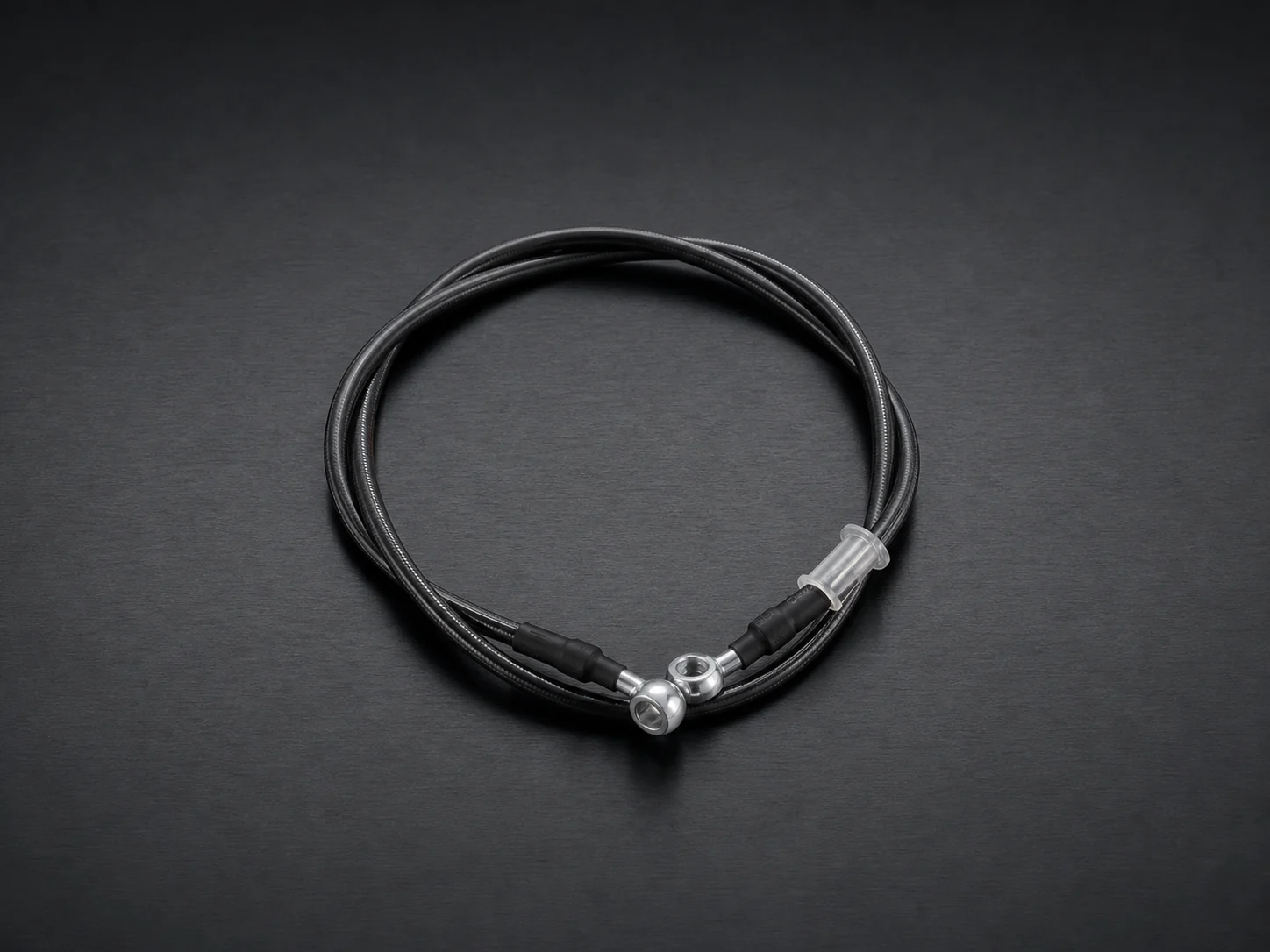

Black line assembly, two eye-style end fittings, heat-shrink protection and a translucent retaining clip visible in the supplied sample reference.
Supplied sample reference · requirement review only
M10-Designated Brake Line Sample Reference
This page records visible details and source-listed front and rear length references from a supplied M10-designated sample. It is not a stock listing or proof of production, compatibility, pressure performance, compliance or commercial availability.
Source lengths0.9–2.20 m
InterfaceNot confirmed
Release statusNot established
Source References
Review Position and Listed Length
Carry a source-listed position and length into the RFQ as a requirement reference. These values are not an offer of stock or a confirmed production configuration.
Sample-derived reference
Rear line reference
Long black line assembly with two eye-style end fittings, heat-shrink protection, a translucent retaining clip and a black coil guard visible in the supplied sample reference.
Recorded Evidence
Current Sample Reference Data
These fields are limited to visible sample details and source-listed values. A released drawing, specification, validation evidence and commercial quotation are still required before any supply conclusion.
| Reference type | Supplied M10-designated brake line sample and source imagery |
| Source designation | M10; exact interface definition and pitch require confirmation |
| Source-listed configuration | Front and rear line references |
| Source-listed front lengths | 0.9 / 1.0 / 1.1 / 1.2 m |
| Source-listed rear lengths | 2.05 / 2.20 m |
| Visible finish | Black outer jacket with a braided appearance visible in the sample reference |
| Visible end hardware | Silver eye-style fittings with black heat-shrink protection |
| Rear protection | Black coil guard near one end |
Sample Details
Full Views and External Detail
These visualizations use the supplied sample as the external reference. They do not establish internal construction, dimensional tolerance or test performance.
Application Context
Review Routing and Connection Before Approval

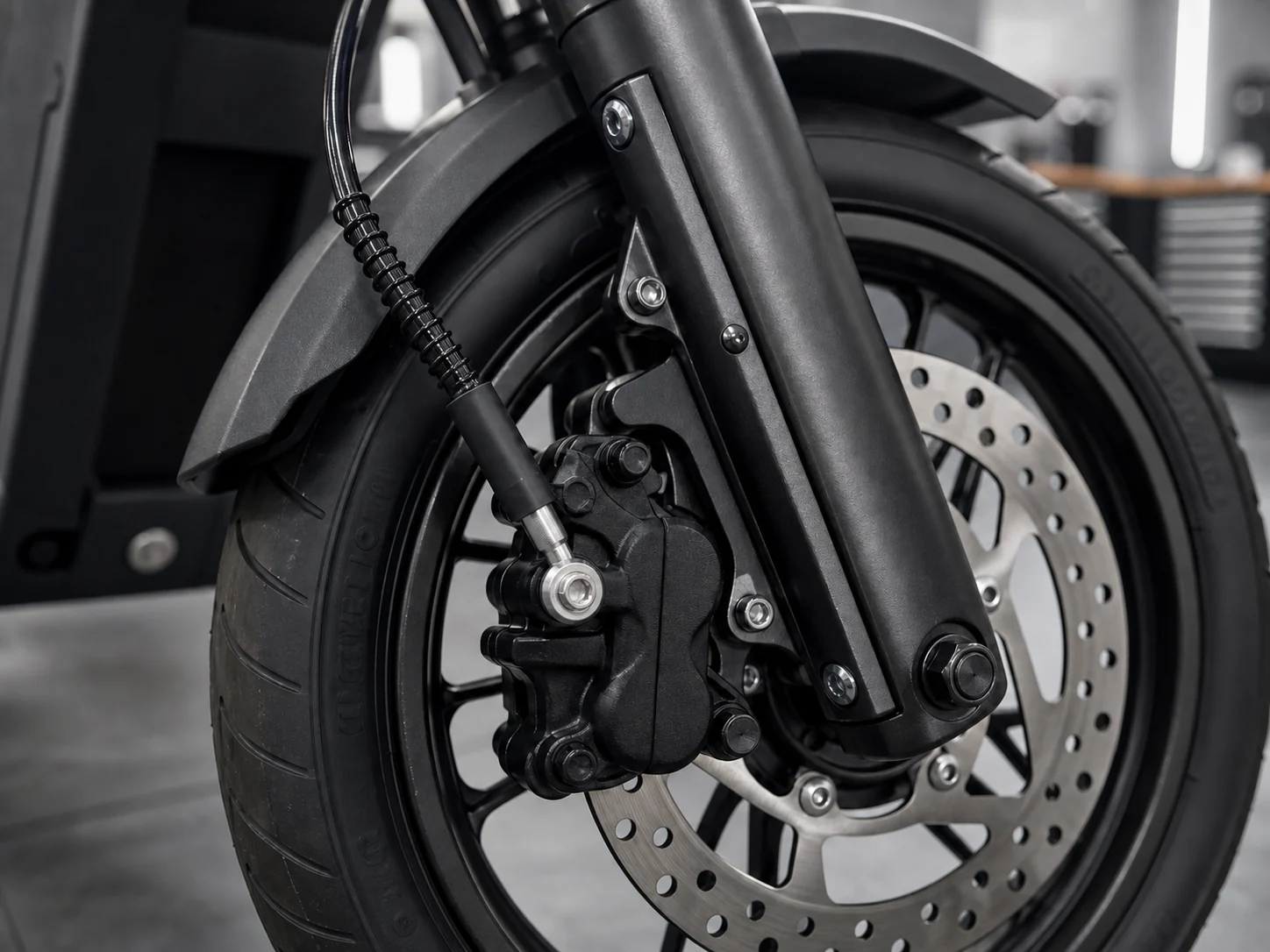

These application visualizations place the ChiZe hose form in a generic scooter environment. They support routing discussion only and are not installation instructions, fit evidence or test evidence.
Before Quotation
Specification Confirmation Required
Brake lines are safety-related components. These points must be closed against buyer input and applicable product documentation before ChiZe can confirm whether the sample can proceed to a sourcing or development discussion.
01 Vehicle and brake system
Provide the vehicle model, drawing, master cylinder and caliper reference.
02 Brake fluid
Mineral oil or DOT compatibility must be defined in the controlled project specification.
03 Hose construction
Inner liner, reinforcement and outer jacket materials require a controlled product specification.
04 Hose dimensions
Nominal ID, OD, tolerances and minimum bend radius require a controlled specification.
05 End interface
Confirm what M10 denotes, thread pitch or bolt size, eye diameter, fitting angle and clocking.
06 Performance
Working, proof and burst pressure; expansion; leakage; pull-off; fatigue and temperature evidence are required.
07 Compliance
An exact standard number and product-linked test report are required before a compliance claim is published.
08 Commercial terms
MOQ, stock status, packaging, sample terms and production lead time require quotation confirmation.
Prepare an M10 Sample Requirement Review
Add the required position, length, vehicle reference, brake fluid, interfaces, target market and estimated quantity.
Technical Intake
Read the hydraulic brake hose guide → Check system compatibility before approval
Review the required fluid, interface, routing, construction and evidence fields before treating this catalog family as suitable for a vehicle platform.
